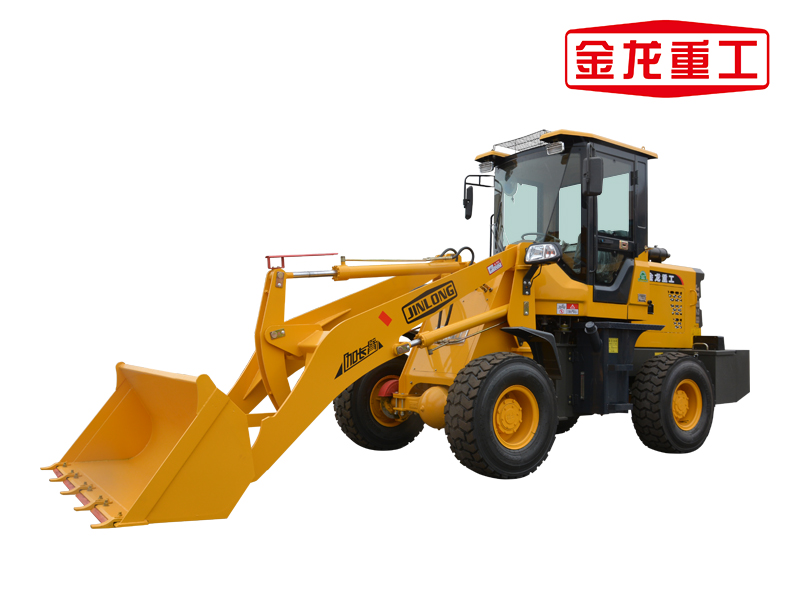

JinLong Heavy Industry 20B/3.2m

JinLong Heavy Industry 20B/3.2m
  • JinLong Heavy Industry 20B/3.2m
JinLong Heavy Industry 20B/3.2m

JinLong Heavy Industry 20B/3.2m

main feature : 1. Large wheelbase, reasonable bridge load distribution, smooth driving operation of the whole machine.

main feature :

1. Large wheelbase, reasonable bridge load distribution, smooth driving operation of the whole machine.

2. Humanized design luxury cab, low noise, full tempered glass, good shock absorption, good heat insulation effect, no blind spots in the line of sight, which can greatly reduce the fatigue strength of the driver.

3. A variety of special buckets can be selected, and the operating tool set and the long arm are super-high unloading to meet the needs of different users.

4. Optimized and computer simulation technology design, high unloading, large breakout force, high efficiency and low fuel consumption.

5. The structural parts such as the front handover, the body beam and other structural parts are all adopted with a plus design, using international materials, sturdy and durable, and improve stability.

6. The four-wheel pneumatic brake of the caliper plate adopts vacuum assist to improve braking performance and safety.

7. Choose brand-name engines, strong power, high efficiency and fuel saving, and meet the needs of users.

model
20B
Unloading height (mm)3200
engineYunnei 65kw (optional)
Transmission formFull hydraulic stepless speed change
Braking formCaliper air brake
Tire specifications20.5/70-16 engineering tires
Unloading distance1000
Dimensions (length*width*height mm)4500*1800*2750
Overall weight3650
